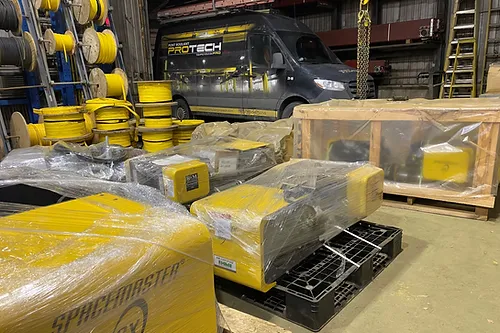

Everything you need to build your overhead bridge crane is included except the bridge steel, paint, tools and labor to build the crane. We even recommend the bridge beam size for you.

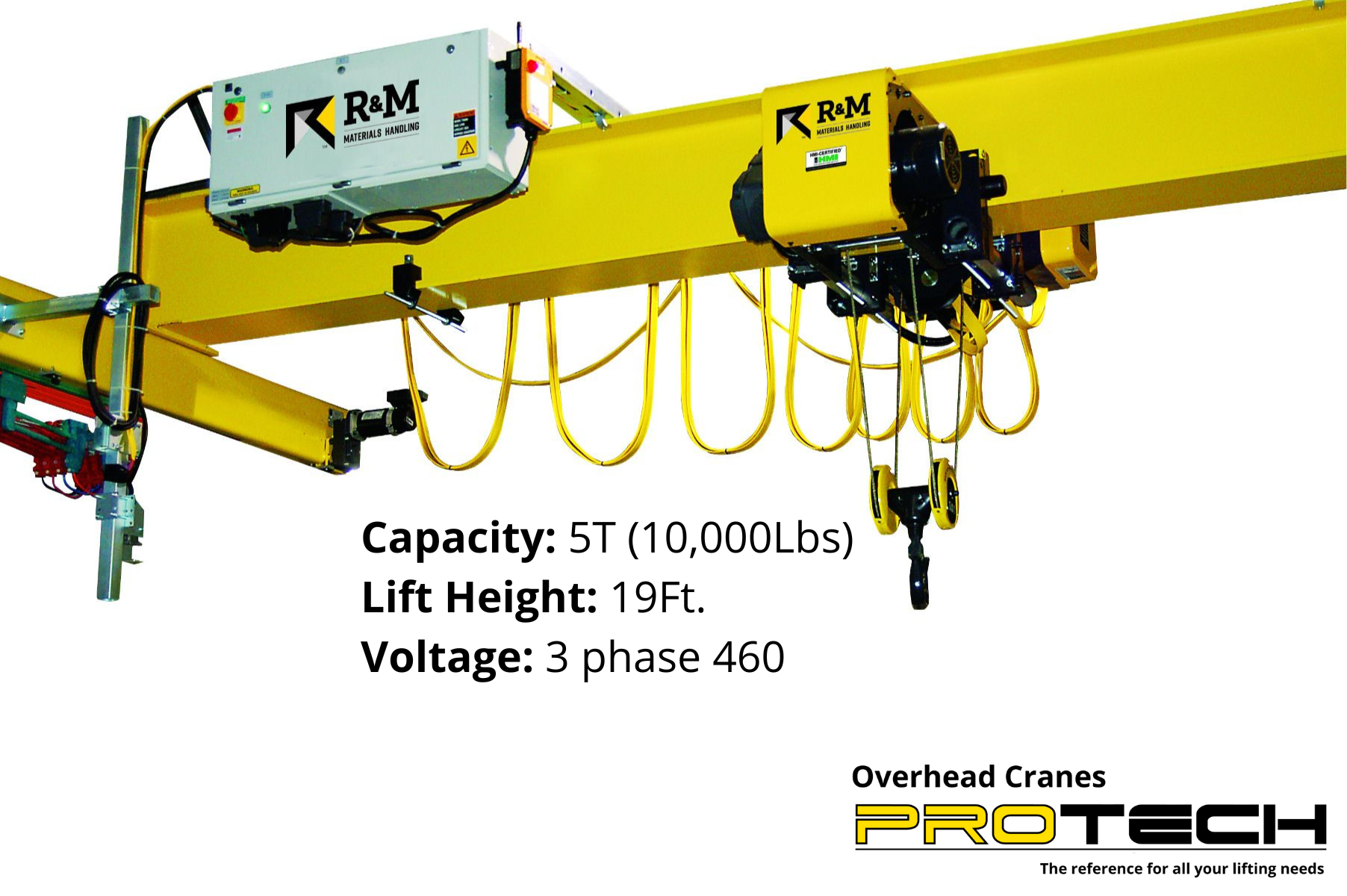

R&M SPACEMASTER® SX ELECTRIC WIRE ROPE HOISTS

The Spacemaster® SX represents a revolutionary new generation of exceptionally reliable electric wire rope hoists , featuring advanced technology and cutting-edge performance.

An innovative design that includes a large drum diameter gives Spacemaster® SX hoists the lowest headrooms and best wheel loads in the industry, while providing near true vertical lift with single reeved hoists, plus exceptional hook approaches and heights of lift. Unique features include low maintenance, sealed brakes; a two-speed hoist motor; and trolley inverter control. The standard hoist nameplate will carry a CSA c/us rating as well as a NEMA 3R rating for the electrical enclosures.

Spacemaster® SX hoists are designed to meet and exceed either ASME H3 or ASME H4 duty (FEM 1Am, 2m or 3m) ratings and provide the ultimate in easy load handling, safe operation and lasting, trouble-free performance.

STANDARD CONFIGURATIONS

Standard configurations include normal headroom, low headroom and double girder trolley designs. Hoists in short ton ratings (ASME) or metric tonne ratings (FEM) meet a wide variety of application requirements:

• Ranging from 2 – 80 ton capacities
• Lifts from 13ft to 320ft.
• Lift speeds 10/1.5 – 62/10 fpm (3/0.5 – 19/3 m/min)
• 208, 230, 460, 575/3/60 or 380/3/50 power supply
• Single-reeved or double-reeved

QX® BRIDGE CONTROLS STANDARD FEATURES:

• Standard inverter offers two speed or 2-step infinitely variable speed control
• CSA c/us approved NEMA 4 type rated control enclosures
• Mainline contactor
• Mainline disconnect switch (mounted in door)
• Plug-in connections for easy assembly and maintenance*
• 115 Volt transformer with fused secondary
• Supports 208, 230, 460 or 575/3/60 power supplies, as well as 380/3/50. Control voltage for all power supplies is 115 Volt (48 Volt is optional)

QX® FESTOON SYSTEMS:

• Suspended from galvanized steel C-track
• Plug connections* on cables make installation, repair and replacement simple and fast, saving expensive down time and the cost of an electrician
• Galvanized steel cable trolleys with steel and plastic cable supports
• PVC flat cables are UL listed and CSA approved with a temperature range of -31ºF to +221ºF (-35ºC to +105ºC)
• All movements can be controlled from a convenient, easy-to-reach plug-in pushbutton station (8 buttons including emergency stop button)
• Independent C-track for pendant station allows operator to be positioned at a safe distance from load

NRG MASTER CRANE KIT ELECTRIFICATION SYSTEM

R&M Overhead Crane Kits are available with an optional electrification upgrade to from the basic plug and play kit.  This option called the NRG Master is a revolutionary electrification option that eliminates dangling cables of the festoons system and increases end approach.  We have this option installed on one of our primary crane here in our shop at Hoosier CraneService and have been very happy with its performance.
