Higher availability for greater efficiency

Intuitive load handling has never been so easy and, at the same time, efficient: Based on our DC range, DCBS chain hoists include a balancer function that allows loads be guided and precisely positioned with ease. DCBS units are available in two sizes with load capacities up to 250 kg. They are compatible with our comprehensive Demag KBK light crane system.

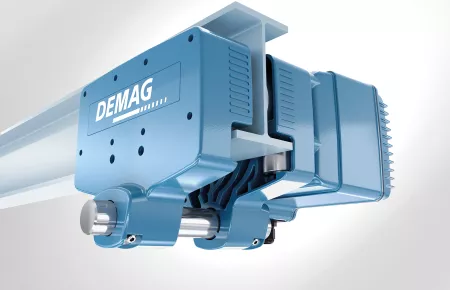

DCBS units can easily travel on KBK profile section rails: on single-girder suspension cranes, suspension monorail systems or on slewing jib cranes. If you want to implement an application with lifting masts, manipulators or your own load-handling attachments, the controller sensors can be installed in the load-bearing arrangement.

High safety and reliability

DCBS core functions

• Lifting and lowering by manual force on the control handle
• Manipulating loads
• Protection against slack chain
• Protection against snatching loads
• Movements can be stopped if loads fluctuate widely
• Monitoring/reducing load capacity

High safety

• Low-wear brake thanks to regenerative braking
• No need to adjust the brake
• Brake arranged before slipping clutch in the drive arrangement (no load slipping)
• Automatic braking if a malfunction occurs
• Slipping clutch with automatic cut-out by means of speed monitoring (no continuous slipping)
• Gearbox, slipping clutch and brake maintenance-free for up to 10 years
• Safety-related functions satisfy at least Performance Level c and Category 2 to EN ISO 13849-1

Features

• Operating limit switches (upper/lower)
• Elapsed operating time counter
• Installation transparency thanks to operating data interface (IDAPSY)
• External sensor in the load-bearing arrangement
  • Applications:
    • lifting masts,
    • manipulators,
    • customer-specific load attachments

Simple installation

• “Plug & Lift” electric connections
