KITO HD3C Spark Resistant Push/Pull Trolley

CAPACITY

• 1/2 to 30 Metric Tons (1/2t ~ 3t, larger sizes available up to 30 Metric Tons)

STANDARDS

• EC machinery directive 2006/42/EC
• ATEX Directive 2014/34/EU
• EN13157
• Equipment classification Gas ATEX Explosion Protected II 2G EX h IIC T4 Gb (zone 1)
• Equipment classification Dust ATEX Explosion Protected II 2D EX h IIIC T135°C Db (zone 21)
• Operating Conditions: -20 to +40° Celsius

OPTIONS

• Special surface protection according to ISO 12944
• Extended handwheel max. 3000mm, dimension “M”
• Parking device for parking in unloaded condition
• Special side plates to increase dimension “E”
• Stainless steel nameplate with tag number
• Straight suspension bolt with spacer
• 3.1 load test certificate
• 3.1 material certificate
• Solid bronze wheels

BODY

• A strong, lightweight, and compact design
• Electric galvanized up to 6t larger chassis are 2 layer paint system, RAL7021

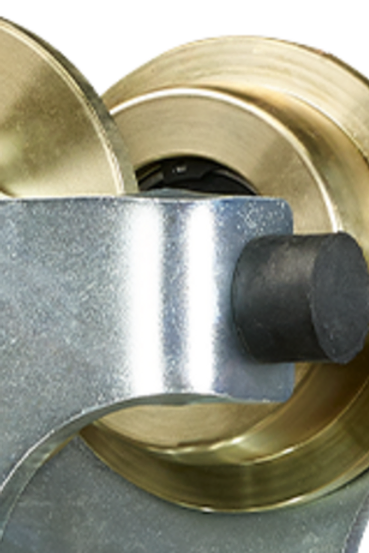

• Rubber bumpers mounted on the trolley
• Safety lugs supplied standard

WHEELS

• Bronze coated wheels
• Contoured to fit both tapered and flat-flange beams

COMPATIBILITY

• Adjustable flange width to fit a wide variety of beam flange widths

BEARINGS

• Maintenance-free low friction design
• Lubricated for life

OPERATION

• Push trolley: Suited to applications involving greater traversing distances
