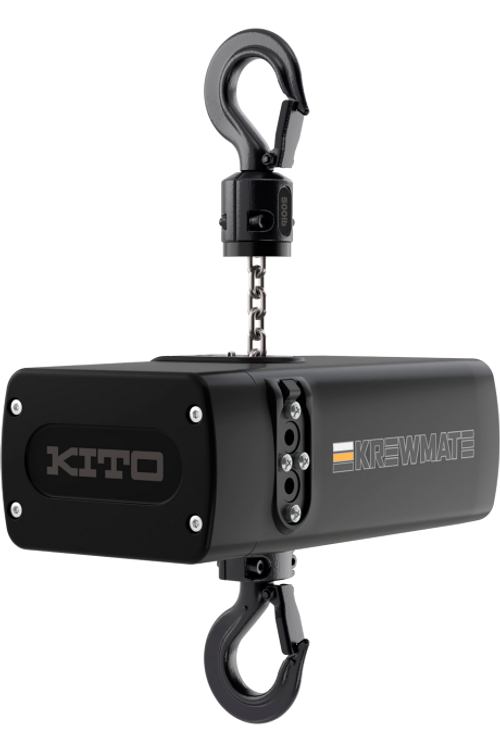

TEM KITO Krewmate Mini Entertainment Hoist

CAPACITY

• 250-500kg

STANDARDS

• Standard lifts at 10 or 60 feet.
• 1 year warranty (from defects in material and workmanship)

RATINGS/CLASSIFICATIONS

• UL1340
• CSA 22.2 No.33
• Complies with German regulation BGV-D8
• Meets CE declaration
• ASME B30.16
• ANSI E 1.6-2
• Hoist — IP65

OPTIONS

• Pendant (Pickle) – IP65
• Pendant Cord
• Chain Container – Canvas
• Power Supply Cord
• Fixed Hook
• Direct Control

BODY

• Sleek rounded body with rugged aluminum housing and no sharp edges
• Body size is designed to fit inside 12″ truss
• Completely sealed and suitable for both indoor and outdoor applications, including harsh environments

SOLID STATE RELAY BOARD

• Has no mechanical contacts for extended lifetime
• Microcontroller provides protection from fast reverse, phase loss and reversal, overcurrent, overtemperature, and overvoltage
• Includes electronic overload limiter and LED error indicator

GEARS

• Grease-Packed Gearbox for demanding theatrical applications
• Maintenance free
• No oil changes required

LOAD CHAIN

• Nickel-plated load chain
• Grade 80
• Meets DIN and EN 818-7 standards.

CHAIN GUIDE

• Prevents tangling when winding up slack chain
• Provides quiet and smooth guiding of chain
• Heat treated for durability

HOOKS

• Forged carbon steel opens gradually without fracturing under excessive loads.
• Top and bottom hook swivel 360°
• Prevents twists in rigging
• Heavy duty hook latches

BRAKE

• 5 year warranty
• Electromagnetic brake
• Simple design: no brake coil to fail or brake disc to replace

OVERLOAD PROTECTION

• Rotor integrated friction clutch outside the load path
• Protects hoist from damage and prevents overwinding
• Provides consistent performance over a wide temperature range

OVERTRAVEL PROTECTION

• Low profile upper/lower limit switches need no adjustment
• Protects hoist and allows for maximum travel
